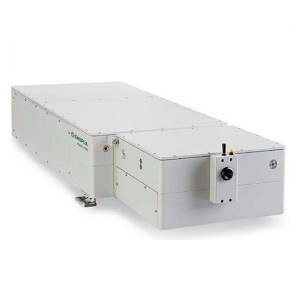

Atlantic UV30

Laser by EKSPLA

Note: Your Quotation Request will be directed to EKSPLA.

The Atlantic UV30 is an industrial picosecond laser capable of producing 30 W of output power at 355 nm. It has a short pulse duration of 10 ps that minimizes the heat-affected zone of the processed material. The high pulse energy of 75 µJ and UV output, makes this laser suitable for tough processes, like OLED cutting, sapphire processing, ceramics micromachining. The laser has external synchronization and precise triggering with jitter of 7 ns (RMS), as well as analog AOM pulse control, which helps to change energy of pulses in real-time with immediate response. The Atlantic UV30 harmonic module optical layout was optimized for longevity and stable operation in UV range with guaranteed 8000 hours UV optics lifetime.

Product Specifications

View similar products

Product Details

  • Part Number
    Atlantic UV30
  • Manufacturer
    EKSPLA
  • Description
    High Power Picosecond UV Laser for Micromachining Applications

General Parameters

  • Type
    Laser System
  • Configuration
    OEM Laser Module, Laser Head with Control Unit (Separate)
  • Ultrafast Laser
    Picosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing, Scientific / Research, Environmental
  • Application
    Drilling, Cutting, Etching, Surface Treatment, Sensing, Imaging, Cladding, Structuring, Laser Ablation, Machine Vision
  • Operation Mode
    Pulsed Laser
  • Wavelength
    355 nm
  • Power
    30 W
  • Pulse Energy :
    0.075 mj
  • Pulse Energy
    75 µJ
  • Pulse Width
    7 to 13 ps
  • Repetition Rate
    400 to 1000 KHz
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Ultraviolet
  • Polarization
    Vertical
  • Polarization Orientation
    Linear
  • Beam Divergence :
    1.5 mrad
  • Current
    5 A
  • Laser Class
    Class IV
  • Power Consumption
    3.5 kW
  • Pointing Stability :
    50 µRad
  • Interface
    keypad, USB
  • Voltage
    100 to 240 V AC
  • Tags
    Atlantic Series
  • Note
    Far Field : 0.85, Triggering mode : Internal / External, Temperature Stability : ± 2 Degree C

Physical Properties

  • Laser Head Dimension
    364 x 190 x 1000 mm (W x H x L) Water
  • Power Supply Dimension
    553 x 1019 x 800 mm (W x H x L) Water
  • Beam Diameter
    2.0 ± 0.3 mm
  • Fiber length
    4 m

Environmental Conditions

  • Cooling Method
    Water Cooled
  • Relative Humidity
    10 to 80 %
  • Operating Temperature
    18 to 27 Degree C
