Kyo

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Enlight Technologies.

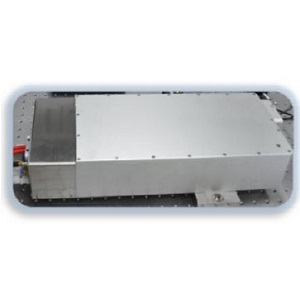

The Kyo from Enlight Technologies is a Laser with Wavelength 355 nm, Power 5 to 8 W, Pulse Width 15 to 60 ns, Repetition Rate 30 to 200 KHz, Operating Temperature 18 to 35 Degree C. More details for Kyo can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Kyo
  • Manufacturer
    Enlight Technologies
  • Description
    HIGH ENERGY DPSS Q - SWITCHED U V LASER

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    nanosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing, Entertainment
  • Application
    Drilling, Perforating, Scribing, Laser Light Shows, Marking, Cutting
  • Operation Mode
    Pulsed Laser
  • Wavelength
    355 nm
  • Power
    5 to 8 W
  • Pulse Width
    15 to 60 ns
  • Repetition Rate
    30 to 200 KHz
  • Technology
    DPSS Laser, Q-Switched Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Ultraviolet
  • Polarization Orientation
    Linear
  • Transverse Mode
    TEM00
  • Gain Medium Type
    Solid State Laser
  • Warm up time
    30 Min.

Physical Properties

  • Package
    Benchtop

Environmental Conditions

  • Relative Humidity
    5 to 95%
  • Operating Temperature
    18 to 35 Degree C
  • Storage Temperature
    0 to 50 Degree C
