Seedo-5

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Enlight Technologies.

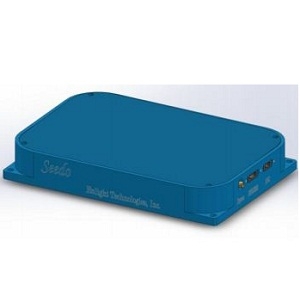

The Seedo-5 from Enlight Technologies is a Laser with Wavelength 1030 nm, Power 2 mW, Pulse Width 6 to 10 ps, Repetition Rate 30 MHz, Operating Temperature 18 to 35 Degree C. More details for Seedo-5 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Seedo-5
  • Manufacturer
    Enlight Technologies
  • Description
    Highly Reliable Picosecond Fiber Laser

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Picosecond Lasers
  • Application Industry
    Medical, Scientific / Research, Automotive / Industrial & Manufacturing, Communications
  • Application
    Bio-Medical, Metrology, Medical Imaging, Welding, Cutting, Drilling, Free-Space Optical Communication
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1030 nm
  • Power
    2 mW
  • Pulse Width
    6 to 10 ps
  • Repetition Rate
    30 MHz
  • Technology
    Mode-Locked Laser
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Polarization Orientation
    Linear
  • Transverse Mode
    TEM00
  • Gain Medium Type
    Solid State Laser
  • Warm up time
    30 Min.
  • Note
    2 to 50 ps Pulse Width available on request

Physical Properties

  • Package
    Benchtop

Environmental Conditions

  • Relative Humidity
    5 to 95%
  • Operating Temperature
    18 to 35 Degree C
  • Storage Temperature
    0 to 50 Degree C
