es CODE C300

Laser by ES LASER
Request Quote

Note: Your Quotation Request will be directed to ES LASER.

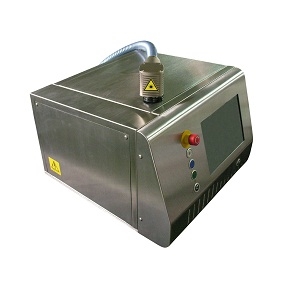

The es CODE C300 from ES LASER is a Laser with Wavelength 1090 nm, Power Up to 30 W, Output Power (CW) Up to 20 W, Operating Temperature 0 to 42 Degree C. More details for es CODE C300 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    es CODE C300
  • Manufacturer
    ES LASER
  • Description
    es CODE having wavelength 1064 to 1090 nm with the proven technology of the Ytterbium fiber

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Automotive / Industrial & Manufacturing
  • Application
    Laser Coding, Tracing, Packaging
  • Operation Mode
    CW Laser
  • Wavelength
    1090 nm
  • Power
    Up to 30 W
  • Output Power (CW)
    Up to 20 W
  • Technology
    Solid State Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Infrared
  • Gain Medium Type
    Solid State Laser
  • Laser Cavity Material
    Yb:YAG
  • Laser Gain Medium
    Ytterbium Lasers
  • Laser Class
    Class I, Class IV
  • Power Consumption
    350 W

Physical Properties

  • Laser Head Weight
    Up to 800 g
  • Beam Diameter
    30 to 50 µm

Environmental Conditions

  • Cooling Method
    Air-Cooled
  • Operating Temperature
    0 to 42 Degree C
