es LASUV 30 to 120 W

Laser by ES LASER
Request Quote

Note: Your Quotation Request will be directed to ES LASER.

The es LASUV 30 to 120 W from ES LASER is a Laser with Wavelength 355 nm, Power 30 to 120 W, Output Power (Pulsed) Up to 120 W, Pulse Width 20 ns, Repetition Rate 40 to 200 KHz. More details for es LASUV 30 to 120 W can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    es LASUV 30 to 120 W
  • Manufacturer
    ES LASER
  • Description

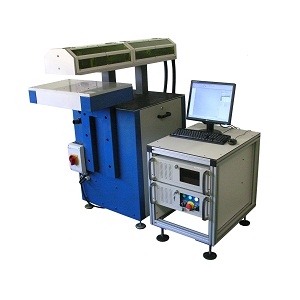

    The ES LASUV industrial UV (355 nm) laser is the solution to mark plastics and ceramics at high speeds while maintaining an impeccable quality

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing, Medical
  • Application
    Cutting, Machine Vision, Bio-Medical
  • Operation Mode
    Pulsed Laser
  • Wavelength
    355 nm
  • Power
    30 to 120 W
  • Output Power (Pulsed)
    Up to 120 W
  • Pulse Width
    20 ns
  • Repetition Rate
    40 to 200 KHz
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Ultraviolet
  • Transverse Mode
    TEM00
  • Laser Class
    Class I, Class IV

Physical Properties

  • Beam Diameter
    25 µm

Environmental Conditions

  • Cooling Method
    Water-Cooled
  • Operating Temperature
    25 Degree C
