FEMTO-25

Laser by Fibercryst
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Fibercryst.

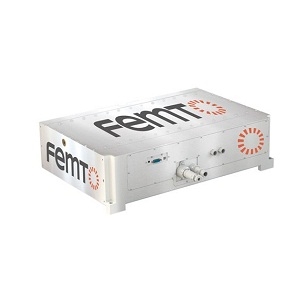

The FEMTO-25 from Fibercryst is a series of industrial femtosecond pulse width lasers that operates at 1030 nm. They delivers a peak power of up to 100 MW and requires a supply voltage of 100 to 230 VAC. These lasers provide high pulse energies up to 100 µJ of pulses below 1 ps pulse width at repetition rates selectable between 100 kHz and 2 MHz. They have a beam diameter of 2 mm and a warm up time of less than 10 minutes. These lasers are available in a module that measures 700 x 460 x 195 mm3 and is ideal for cutting, drilling and structuring of surfaces.

Product Specifications

View similar products

Product Details

  • Part Number
    FEMTO-25
  • Manufacturer
    Fibercryst
  • Description
    FemtosecondLaser Series

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Femtosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing, Scientific / Research
  • Application
    Cutting, Drilling, Spectroscopy, Interferometry, Machine Vision, Surface Treatment, Structuring
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1030 nm
  • Power
    10 to 25 W
  • Output Power (Pulsed)
    10 to 25 W
  • Pulse Energy :
    12.5 to 100 µJ
  • Pulse Energy
    12.5 to 100 µJ
  • Pulse Width
    <900 fs
  • Repetition Rate
    100 kHz to 2 MHz
  • Tunable
    Yes
  • Fiber Coupled
    No
  • Laser Color
    Infrared
  • Transverse Mode
    TEM00
  • Warm up time
    10 ms
  • Modulation Frequency
    50 to 60 Hz
  • Peak Power
    12.5 to 100 mW
  • Power Supply
    100 to 230 VAC/50 to 60 Hz

Physical Properties

  • Laser Head Dimension
    700 x 460 x 195 mm3
  • Beam Diameter
    2 mm
