FLAST-Nano 50W

Laser by FiberLAST
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to FiberLAST.

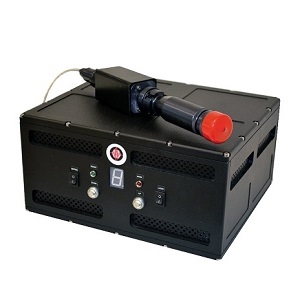

The FLAST-Nano 50W from FiberLAST is a Laser with Wavelength 1064 nm, Power 50 W, Pulse Energy 0.5 mJ, Pulse Width 50 to 500 ns, Repetition Rate 100 to 500 kHz. More details for FLAST-Nano 50W can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FLAST-Nano 50W
  • Manufacturer
    FiberLAST
  • Description
    Nano Series Laser Modules

General Parameters

  • Type
    Laser System
  • Configuration
    OEM Laser Module, Laser Head with Control Unit (Separate)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing, Scientific / Research, Defense / Military & Aerospace
  • Application
    Marking, Engraving, Cutting, Etching, Trimming, Imaging, LiDAR, Targeting
  • Operation Mode
    CW/Pulsed Laser
  • Wavelength
    1064 nm
  • Wavelength Accuracy
    ±2 nm
  • Bandwidth
    ± 5 nm
  • Power
    50 W
  • Pulse Energy :
    0.5 mJ
  • Pulse Energy
    0.5 mJ
  • Pulse Width
    50 to 500 ns
  • Repetition Rate
    100 to 500 kHz
  • Technology
    Solid State Laser
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Polarization Orientation
    Random
  • Gain Medium Type
    Solid State Laser
  • Laser Gain Medium
    Ytterbium Laser
  • Peak Power
    10 kW

Physical Properties

  • Beam Diameter
    7.5±0.5 nm

Environmental Conditions

  • Relative Humidity
    10% to 90%
  • Operating Temperature
    0 to 50 Degree C
  • Storage Temperature
    10 to 60 Degree C
