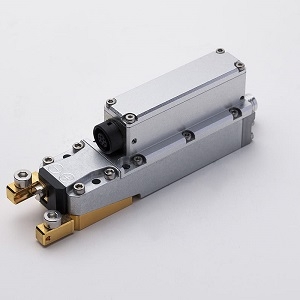

FL-LM2001-20-981-200

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Focuslight Technologies.

The FL-LM2001-20-981-200 from Focuslight Technologies is a Laser with Wavelength 981 nm, Power 20 W, Output Power (CW) 20 W, Operating Temperature 15 to 30 Degree C, Storage Temperature -20 to 60 Degree C. More details for FL-LM2001-20-981-200 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FL-LM2001-20-981-200
  • Manufacturer
    Focuslight Technologies
  • Description
    981 nm Fiber Coupled 20 W Diode Laser

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research, Medical
  • Application
    Advanced Manufacturing, Health, Information Technology, Scientific Research, Medical, Pumping, Illumination
  • Operation Mode
    CW Laser
  • Wavelength
    981 nm
  • Wavelength Accuracy
    ±1 nm
  • Spectral Width :
    <1 nm
  • Power
    20 W
  • Output Power (CW)
    20 W
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Spectral Efficiency
    >90%
  • Slope Efficiency :
    >0.8 W/A
  • Connectors
    SMA905
  • Current
    <40 to 50 A
  • Laser Class
    Class IV
  • Numerical Aperture
    0.22
  • Voltage
    <2 V
  • Note
    E/O efficiency: >33%

Physical Properties

  • Dimension
    108.4 x 25 x 28 mm
  • Weight
    0.35 kg
  • Fiber diameter
    200 µm

Environmental Conditions

  • Cooling Method
    Conduction-Cooled
  • Operating Temperature
    15 to 30 Degree C
  • Storage Temperature
    -20 to 60 Degree C
