FC-400-XXXXT-FC400

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Frankfurt Laser Company.

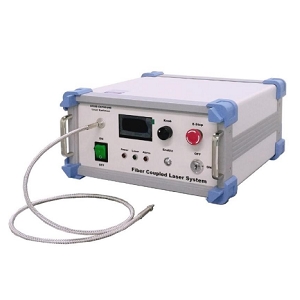

The FC-400-XXXXT-FC400 from Frankfurt Laser Company is a Laser with Wavelength 400 nm, Power 1 to 3000 mW, Operating Temperature 10 to 35 Degree C. More details for FC-400-XXXXT-FC400 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FC-400-XXXXT-FC400
  • Manufacturer
    Frankfurt Laser Company
  • Description
    3 mW Power Lasers with 400 nm

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Medical, Automotive / Industrial & Manufacturing
  • Application
    Biomedical, Industrial and Research Applications
  • Operation Mode
    CW Laser
  • Wavelength
    400 nm
  • Wavelength Accuracy
    ±5 nm
  • Power
    1 to 3000 mW
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Ultraviolet
  • Connectors
    SMA905
  • Warm up time
    <5 minutes
  • Modulation Frequency
    Up to 30 kHz
  • Power Stability
    <1%, <2%, <3%
  • Power Supply
    100 to 240 VAC
  • Note
    Expected Lifetime: 10000 hours

Physical Properties

  • Package
    Benchtop
  • Dimension
    330 x 291 x 156 mm (L x W x H)
  • Weight
    10 kg
  • Fiber diameter
    400 µm (Core)
  • Fiber length
    1 m

Environmental Conditions

  • Operating Temperature
    10 to 35 Degree C
