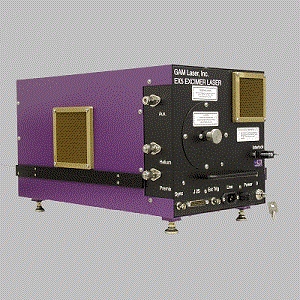

EX50F

Laser by GAM LASER
14 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to GAM LASER.

The EX50F from GAM LASER is a Laser with Wavelength 157 nm, Power 0.8 to 2.8 W, Output Power (Pulsed) 0.8 to 2.8 W, Pulse Energy 4.5 mJ, Pulse Width 10 ns. More details for EX50F can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    EX50F
  • Manufacturer
    GAM LASER
  • Description
    157nm F2 LASERS

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Scientific / Research, Automotive / Industrial & Manufacturing
  • Operation Mode
    Pulsed Laser
  • Wavelength
    157 nm
  • Power
    0.8 to 2.8 W
  • Output Power (Pulsed)
    0.8 to 2.8 W
  • Pulse Energy :
    4.5 mJ
  • Pulse Energy
    4.5 mJ
  • Pulse Width
    10 ns
  • Repetition Rate
    250 to 750 Hz
  • Technology
    Excimer Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Ultraviolet
  • Beam Divergence :
    0.9 x 1.8 mrad

Physical Properties

  • Beam Area
    9 x 3 mm

Environmental Conditions

  • Cooling Method
    Air-Cooled: 250/300/600 Hz ,Water-Cooled : 500/750 Hz
