EX5F

Laser by GAM LASER
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to GAM LASER.

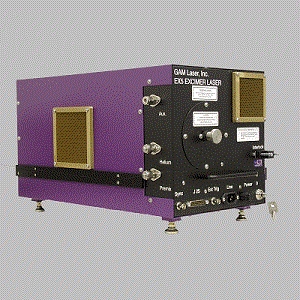

The EX5F from GAM LASER is a Laser with Wavelength 157 nm, Power 0.4 to 1 W, Output Power (Pulsed) 0.4 to 1 W, Pulse Energy 2 mJ, Pulse Width 8 ns. More details for EX5F can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    EX5F
  • Manufacturer
    GAM LASER
  • Description
    157nm F2 LASERS

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Scientific / Research, Automotive / Industrial & Manufacturing
  • Operation Mode
    Pulsed Laser
  • Wavelength
    157 nm
  • Power
    0.4 to 1 W
  • Output Power (Pulsed)
    0.4 to 1 W
  • Pulse Energy :
    2 mJ
  • Pulse Energy
    2 mJ
  • Pulse Width
    8 ns
  • Repetition Rate
    250 to 750 Hz
  • Technology
    Excimer Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Ultraviolet
  • Beam Divergence :
    1 X 2 mrad

Physical Properties

  • Beam Area
    6 x 3 mm

Environmental Conditions

  • Cooling Method
    Air-Cooled: 250/300/600 Hz ,Water-Cooled : 500/750 Hz
