G21K

Laser by Gigaphoton

Note: Your Quotation Request will be directed to Gigaphoton.

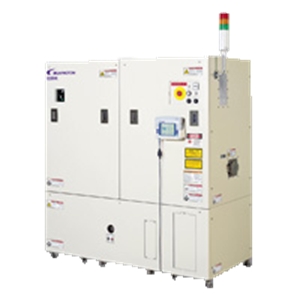

The G21K from Gigaphoton is a Krypton Fluoride (KrF) Excimer Laser that operates at a wavelength of 248 nm. It delivers an average output power of 20 W and has a pulse energy of 10 mJ. This laser has a repetition rate of 2000 Hz and bandwidth (FWHM) of 0.5 pm & 1.4 pm (E95). It has a exposure of 0.13 µm and energy dose stability of 0.35%. This laser is ideal for industrial and manufacturing applications.

Product Specifications

View similar products

Product Details

  • Part Number
    G21K
  • Manufacturer
    Gigaphoton
  • Description
    248 nm KrF Excimer Laser for Industrial Applications

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Automotive / Industrial & Manufacturing
  • Operation Mode
    Pulsed Laser
  • Wavelength
    248 nm
  • Bandwidth
    0.5 to 1.4 pm
  • Power
    20 W
  • Pulse Energy :
    10 mJ
  • Repetition Rate
    2000 Hz
  • Technology
    Excimer laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Ultraviolet
  • Gain Medium Type
    Gas Laser
  • Laser Cavity Material
    Krypton Fluoride
  • Laser Gain Medium
    Excimer Laser
