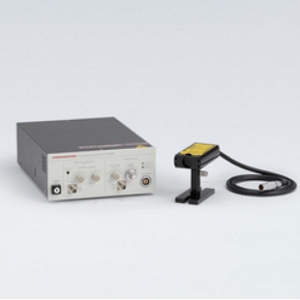

M10306-34

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Hamamatsu Photonics.

The M10306-34 from Hamamatsu Photonics is a Laser with Wavelength 465 nm, Power 40 to 90 mW (Peak), Pulse Width 70 to 100 ps, Repetition Rate 2 Hz to 100 MHz, Operating Temperature 10 to 30 Degree C. More details for M10306-34 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    M10306-34
  • Manufacturer
    Hamamatsu Photonics
  • Description
    465 nm Laser Diode Head with 40 to 90 mW Peak Power

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head
  • Ultrafast Laser
    Picosecond Lasers
  • Application Industry
    Scientific Research
  • Application
    Excitation light source for LIF, Spectrum analysis, Pulse response measurement
  • Operation Mode
    Pulsed Laser
  • Wavelength
    465 nm
  • Wavelength Accuracy
    <±10 nm
  • Spectral Width :
    <10 nm
  • Power
    40 to 90 mW (Peak)
  • Pulse Width
    70 to 100 ps
  • Repetition Rate
    2 Hz to 100 MHz
  • Technology
    Gas Laser
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Blue
  • Gain Medium Type
    Gas Laser
  • Laser Cavity Material
    He-Cd, Argon Ion
  • Laser Gain Medium
    Ion Lasers
  • Connectors
    FC/APC
  • Laser Class
    Class 3B
  • Power Consumption
    90 VA
  • Peak Power
    40 to 90 mW
  • Power Supply
    100 to 240 VAC, 50 to 60 Hz (Line Voltage), 90 to 264 VAC (Supply)

Physical Properties

  • Laser Head Weight
    0.9 kg
  • Power Supply Weight
    4.6 kg
  • Fiber diameter
    50/125 µm
  • Fiber length
    2 m

Environmental Conditions

  • Relative Humidity
    <70% (Operating)
  • Operating Temperature
    10 to 30 Degree C
  • Storage Temperature
    -10 to 50 Degree C
