DD532-5-3

Laser by Huanic
173 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Huanic.

The DD532-5-3 from Huanic is a Laser with Wavelength 532 nm, Power 5 mW, Output Power (CW) 5 mW, Operating Temperature 15 to 30 Degree C. More details for DD532-5-3 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    DD532-5-3
  • Manufacturer
    Huanic
  • Description

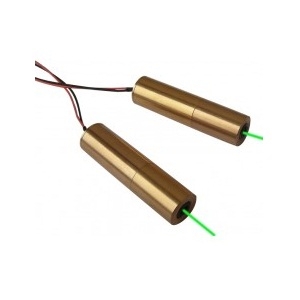

    Green dot laser module compact copper housing

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head
  • Application Industry
    Automotive / Industrial & Manufacturing, Defense / Military & Aerospace, Entertainment, Environmental
  • Application
    Cutting, Marking, LiDAR, 3D Printing, Surface Treatment, Laser Projectors, Laser Surveying, Cleaning, Contaminant Detection, Machine Vision
  • Operation Mode
    CW Laser
  • Wavelength
    532 nm
  • Power
    5 mW
  • Output Power (CW)
    5 mW
  • Technology
    DPSS Laser, Solid State Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Green
  • Transverse Mode
    TEM00
  • Beam Divergence :
    0.5 mrad
  • Gain Medium Type
    Solid State Laser
  • Laser Cavity Material
    Nd:YVO4
  • Laser Gain Medium
    Vanadate Laser
  • Beam Shape
    Dot
  • Current
    300 mA
  • Laser Class
    Class II
  • Power Stability
    ±20%
  • Voltage
    DC to 3 V
  • Note
    Crystal: Nd:YVO4, KTP, Standard Operating Distance: 50 meter, Output Aperture: 0.5 mm, Optics: Glass Lens Both Sides AR Coated, Life Time: 5000 hours

Physical Properties

  • Dimension
    12 x 45 mm
  • Beam Area
    5mm@ 10m

Environmental Conditions

  • Operating Temperature
    15 to 30 Degree C
