ILP830-5-3

Laser by Huanic
173 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Huanic.

The ILP830-5-3 from Huanic is a Laser with Wavelength 830 nm, Power 5 mW, Output Power (CW) 5 mW, Operating Temperature -10 to 40 Degree C, Storage Temperature -40 to 80 Degree C. More details for ILP830-5-3 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ILP830-5-3
  • Manufacturer
    Huanic
  • Description

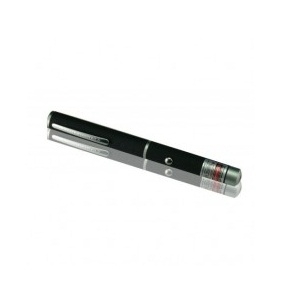

    Infrared laser pointer

General Parameters

  • Type
    Laser Pointer
  • Configuration
    Laser Head
  • Application Industry
    Automotive / Industrial & Manufacturing, Defense / Military & Aerospace, Entertainment, Environmental
  • Application
    Cutting, Marking, LiDAR, 3D Printing, Surface Treatment, Laser Projectors, Laser Surveying, Cleaning, Contaminant Detection, Machine Vision
  • Operation Mode
    CW Laser
  • Wavelength
    830 nm
  • Power
    5 mW
  • Output Power (CW)
    5 mW
  • Technology
    DPSS Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Infrared
  • Beam Divergence :
    0.4 mrad
  • Beam Shape
    Elliptical
  • Laser Class
    Class II
  • Voltage
    DC to 3 V
  • Note
    Output Aperture: 2.7 mm, Life Time: 8000 hours

Physical Properties

  • Power Supply Dimension
    115 x 138 mm
  • Dimension
    16 x 45 mm
  • Beam Area
    1mm x 2.5mm@ aperture

Environmental Conditions

  • Operating Temperature
    -10 to 40 Degree C
  • Storage Temperature
    -40 to 80 Degree C
