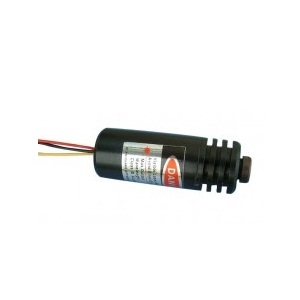

MDH808-350-5

Laser by Huanic
173 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Huanic.

The MDH808-350-5 from Huanic is a Laser with Wavelength 808 nm, Power 350 mW, Output Power (CW) 350 mW, Operating Temperature -10 to 40 Degree C, Storage Temperature -40 to 80 Degree C. More details for MDH808-350-5 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    MDH808-350-5
  • Manufacturer
    Huanic
  • Description
    Modulated infrared laser module focus adjustable

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head
  • Application Industry
    Automotive / Industrial & Manufacturing, Defense / Military & Aerospace, Entertainment, Environmental
  • Application
    Cutting, Marking, LiDAR, 3D Printing, Surface Treatment, Laser Projectors, Laser Surveying, Cleaning, Contaminant Detection, Machine Vision
  • Operation Mode
    CW Laser
  • Wavelength
    808 nm
  • Power
    350 mW
  • Output Power (CW)
    350 mW
  • Technology
    DPSS Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Infrared
  • Beam Divergence :
    1 mrad
  • Beam Shape
    Elliptical
  • Current
    550 mA
  • Laser Class
    Class III
  • Voltage
    DC to 5 V
  • Note
    Standard Operating Distance: 10 meter, Output Aperture: 0.5 mm, Optics: Glass Lens Both Sides AR Coated, Life Time: 8000 hours

Physical Properties

  • Dimension
    22 x 65 mm
  • Beam Area
    3mm x 400mm@10 meters

Environmental Conditions

  • Operating Temperature
    -10 to 40 Degree C
  • Storage Temperature
    -40 to 80 Degree C
