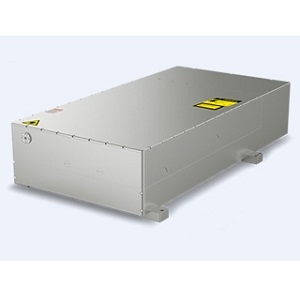

Olive-1064-30

Request Quote

Note: Your Quotation Request will be directed to Huaray Precision Laser.

The Olive-1064-30 from Huaray Precision Laser is a Laser with Wavelength 1064 nm, Power 30 W, Output Power (Pulsed) 30 W, Pulse Energy 60 µJ, Pulse Width <10 ps. More details for Olive-1064-30 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Olive-1064-30
  • Manufacturer
    Huaray Precision Laser
  • Description
    Mid-Power Picosecond IR Ultra-fast Lasers

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Picosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing, Environmental, Scientific / Research
  • Application
    Material processing, Cutting, Cladding, Solar cell, structuring, Machine Vision
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1064 nm
  • Power
    30 W
  • Output Power (Pulsed)
    30 W
  • Pulse Energy :
    60 µJ
  • Pulse Energy
    60 µJ
  • Pulse Width
    <10 ps
  • Repetition Rate
    100 to 1000 kHz
  • Pulse to Pulse Stability
    <2%rms
  • Technology
    Solid State Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Infrared
  • Polarization
    Horizontal
  • Beam Divergence :
    <3 mrad
  • Gain Medium Type
    Solid State Laser
  • Laser Cavity Material
    Nd:YVO4
  • Laser Gain Medium
    Vanadate Laser
  • Laser Class
    Class IV
  • Power Consumption
    2000 W
  • Power Stability
    Long term stability: <3%
  • Pointing Stability :
    <50 µrad

Physical Properties

  • Beam Diameter
    <2 mm
