Cobolt Rogue Series

Note: Your Quotation Request will be directed to HÜBNER Photonics.

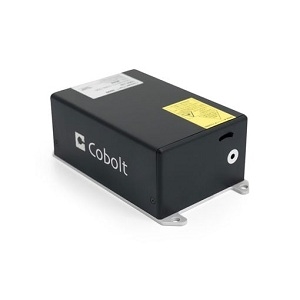

The Cobolt Rogue Series from HÜBNER Photonics are CW Diode-Pumped Lasers that operate at 640 nm. The lasers are built using proprietary HTCure&trade manufacturing technology for ultra-robustness. As a complement to the Cobolt 05-01 Series of single-frequency lasers, the Cobolt RogueTM Series lasers deliver higher optical power of 1 W and have a spectral bandwidth of under 150 GHz. The lasers emit a very high-quality laser beam with stable characteristics over a wide range of operating conditions, and they are designed and manufactured to ensure a high level of reliability. They have a beam divergence of under 1.4 mrad and a beam pointing stability of less than 10 µrad/°C.

These lasers are available in a hermetically sealed package and are intended for stand-alone use in laboratory environments or for integration as OEM components in instruments for applications including fluorescence microscopy, flow cytometry, DNA sequencing, and High content analysis.

Product Specifications

View similar products

Product Details

  • Part Number
    Cobolt Rogue Series
  • Manufacturer
    HÜBNER Photonics
  • Description
    High Power, CW Diode pumped lasers

General Parameters

  • Type
    Laser System
  • Configuration
    OEM Laser Module, Laser Head with Control Unit (Separate)
  • Application Industry
    Scientific / Research, Environmental
  • Application
    Fluorescence, Microscopy, Flow Cytometry, DNA Sequencing, Particle Analysis
  • Operation Mode
    CW Laser
  • Wavelength
    640 nm
  • Wavelength Accuracy
    ±0.3 nm
  • Bandwidth
    <150 GHz
  • Power
    1 W
  • Technology
    DPSS Laser
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Red
  • Polarization
    Vertical
  • Polarization Orientation
    Linear
  • Polarization ratio :
    > 100:1
  • Transverse Mode
    TEM00
  • Beam Divergence :
    <1.4 mrad (Full angle)
  • Beam Quality Factor (M2) :
    <1.1
  • Current
    6 A
  • Laser Class
    Class 4
  • Power Stability
    <2%
  • Pointing Stability :
    <10 µrad/°C
  • RMS Noise Power
    <0.5% rms ( 20 Hz - 20 MHz)
  • Interface
    USB, RS-232
  • Voltage
    15 VDC
  • Warranty
    12 Months
  • Note
    Beam symmetry at aperture:> 0.90:1

Physical Properties

  • Package
    Benchtop
  • Beam Diameter
    700 ± 50 µm

Environmental Conditions

  • Relative Humidity
    0 to 90%
  • Operating Temperature
    10 to 35 Degree C
  • Storage Temperature
    -10 to 60 Degree C

Technical Documents

Click to view more product details on manufacturer's website
