AO-266

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Idealphotonics Inc.

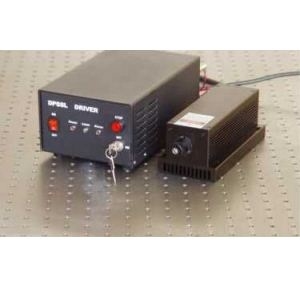

The AO-266 from Idealphotonics Inc is a Laser with Wavelength 266 nm, Power 200 mW, Output Power (Pulsed) 200 mW, Pulse Energy 20 uJ, Pulse Width 10 to 15 ns. More details for AO-266 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    AO-266
  • Manufacturer
    Idealphotonics Inc
  • Description
    Q-SWITCHED UV LASER

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Scientific / Research
  • Application
    Photoluminescence, Spectrum Analysis
  • Operation Mode
    Pulsed Laser
  • Wavelength
    266 nm
  • Power
    200 mW
  • Output Power (Pulsed)
    200 mW
  • Pulse Energy :
    20 uJ
  • Pulse Energy
    20 uJ
  • Pulse Width
    10 to 15 ns
  • Repetition Rate
    1 to 50 kHz
  • Technology
    Q-Switched Laser
  • Tunable
    Yes
  • Fiber Coupled
    Yes
  • Laser Color
    Ultraviolet
  • Beam Divergence :
    1.5 mrad
  • Pointing Stability :
    0.05 mrad
  • Interface
    RS-232
  • RoHS
    Yes

Physical Properties

  • Beam Diameter
    -2 mm

Environmental Conditions

  • Operating Temperature
    10 to 35 Degree C

Technical Documents
