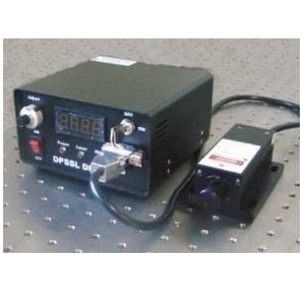

MDL-395

178 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Idealphotonics Inc.

The MDL-395 from Idealphotonics Inc is a Laser with Wavelength 395 nm, Power 100 mW, Output Power (CW) 100 mW, Operating Temperature 10 to 35 Degree C. More details for MDL-395 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    MDL-395
  • Manufacturer
    Idealphotonics Inc
  • Description
    CW UV LASER UV /MDL/MLL

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Application Industry
    Scientific / Research
  • Application
    DNA Sequencing, Flow Cytometry, Spectrum Analysis
  • Operation Mode
    CW Laser
  • Wavelength
    395 nm
  • Spectral Width :
    0.8 nm
  • Power
    100 mW
  • Output Power (CW)
    100 mW
  • Technology
    Solid State Laser
  • Tunable
    Yes
  • Fiber Coupled
    Yes
  • Laser Color
    Violet
  • Beam Divergence :
    0.5 mrad
  • Power Stability
    1%, 3%, 5%
  • Pointing Stability :
    0.05 mrad
  • Interface
    RS-232
  • RoHS
    Yes

Physical Properties

  • Beam Diameter
    -3 mm

Environmental Conditions

  • Operating Temperature
    10 to 35 Degree C
