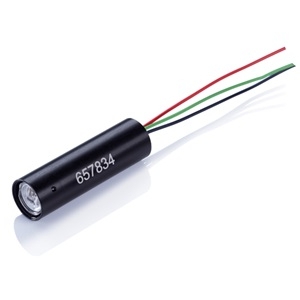

IMM1040-655-50-E-X-Y

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to IMM Photonics GmbH.

The IMM1040-655-50-E-X-Y from IMM Photonics GmbH is a Laser with Wavelength 655 nm, Power 50 mW, Operating Temperature -10 to 65 Degree C, Storage Temperature -20 to 70 Degree C. More details for IMM1040-655-50-E-X-Y can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    IMM1040-655-50-E-X-Y
  • Manufacturer
    IMM Photonics GmbH
  • Description
    655 nm Red DOT Laser with 50 mW Power

General Parameters

  • Type
    Laser Module, Alignment Laser, Laser Pointer
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Entertainment, Scientific Research
  • Application
    Pointing, Alignment lasers, Laboratory instruments, Measuring instruments, Sensors
  • Operation Mode
    CW Laser
  • Wavelength
    655 nm
  • Power
    50 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Red
  • Beam Divergence :
    0.4 mrad
  • Beam Shape
    Elliptical, Dot
  • Current
    240 mA
  • Laser Class
    Class 1 - 3B
  • Modulation Frequency
    0 to 25 kHz
  • Power Stability
    <6%
  • Voltage
    4.5 to 5.5 V

Physical Properties

  • Dimension
    10 x 40 (Dia. x L)
  • Beam Diameter
    1 x 3 mm

Environmental Conditions

  • Operating Temperature
    -10 to 65 Degree C
  • Storage Temperature
    -20 to 70 Degree C
