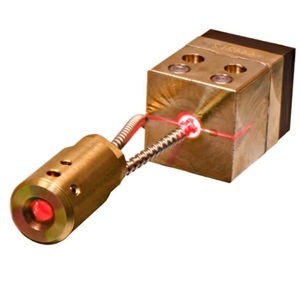

IMM1255-635-8-L-Y

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to IMM Photonics GmbH.

The IMM1255-635-8-L-Y from IMM Photonics GmbH is a Laser with Wavelength 635 nm, Power 8 mW, Operating Temperature -10 to 45 Degree C, Storage Temperature -40 to 70 Degree C. More details for IMM1255-635-8-L-Y can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    IMM1255-635-8-L-Y
  • Manufacturer
    IMM Photonics GmbH
  • Description
    635 nm Red Laser Line with 8 mW Power

General Parameters

  • Type
    Laser Module, Alignment Laser, Laser Pointer
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Entertainment, Scientific Research
  • Application
    Pointing, Alignment lasers, Laboratory instruments, Measuring instruments, Sensors, Machine vision, Measuring systems
  • Operation Mode
    CW Laser
  • Wavelength
    635 nm
  • Spectral Width :
    0.2 mm
  • Power
    8 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Red
  • Beam Divergence :
    0.6 mrad
  • Rise/Fall Time :
    37 to 45 ns (Rise), 19 to 25 ns (Fall)
  • Beam Shape
    Line
  • Current
    300 to 350 mA
  • Laser Class
    Class 3B
  • Modulation Frequency
    0 to 25 kHz
  • Digital Modulation
    Digital (5 V), 500 kHz
  • Voltage
    4.5 to 5.5 V
  • Note
    Cable length: 2 m

Physical Properties

  • Dimension
    12 x 55 (Dia. x L)
  • Beam Diameter
    0.7 x 100 mm

Environmental Conditions

  • Operating Temperature
    -10 to 45 Degree C
  • Storage Temperature
    -40 to 70 Degree C
