FD/D-FD-1000S

Laser by IMRA America, Inc

Note: Your Quotation Request will be directed to IMRA America, Inc.

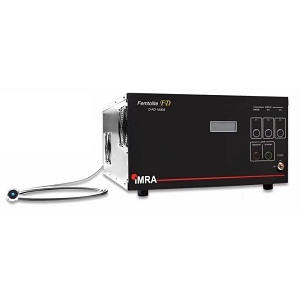

The FD/D-FD-1000S from IMRA America, Inc is a Femtosecond Pulsed Laser that operates at 1045 nm. It delivers femtosecond laser pulses via an optical fiber cable to the user application. The device delivers an average power of over 1 watt. It features Integrated high-speed blanking (< 1 µs), a variable power function and has a beam quality of less than 1.3. The laser has a pulse duration of less than 200 fs with a repetition rate of 50 ± 5 MHz. It is available as a benchtop unit that measures 500 x 540 x 270 mm with a 3 - 4 m, Φ 7.7 mm flexible armored cable. It is ideal for fluorescence protein imaging, in-vivo imaging, and non-linear optical microscopy.

 Product Specifications

    Product Details

    • Part Number :
      FD/D-FD-1000S
    • Manufacturer :
      IMRA America, Inc

    General Parameters

    • Configuration :
      Laser Head with Control Unit (Integrated)
    • Type :
      Laser System
    • Operation Mode :
      Pulsed Laser
    • Ultrafast Laser :
      Femtosecond Lasers
    • Wavelength :
      1045 nm
    • Tunable :
      No
    • Fiber Coupled :
      Yes
    • Laser Color :
      Infrared
    • Power :
      1 W
    • Output Power (Pulsed) :
      1 W
    • Pulse Width :
      200 fs
    • Repetition Rate :
      50 MHz
    • Beam Quality Factor (M2) :
      1.3

    Physical Properties

    • Laser Head Dimension :
      500 x 540 x 270 mm³
    • Fiber length :
      3 to 4 m

    Environmental Conditions

    • Cooling Method :
      Air-Cooled
    • Operating Temperature :
      20 to 30 Degree C
