FX-100

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to IMRA America, Inc.

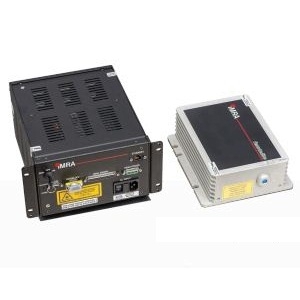

The FX-100 from IMRA America, Inc is a Laser with Wavelength 805 nm, Power 100 mW, Output Power (Pulsed) 100 mW, Pulse Width 120 fs, Repetition Rate 75 MHz. More details for FX-100 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FX-100
  • Manufacturer
    IMRA America, Inc

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Ultrafast Laser
    Femtosecond Lasers
  • Application Industry
    Scientific / Research
  • Application
    Microscopy, Imaging, Spectroscopy
  • Operation Mode
    Pulsed Laser
  • Wavelength
    805 nm
  • Wavelength Accuracy
    ± 15 nm
  • Power
    100 mW
  • Output Power (Pulsed)
    100 mW
  • Pulse Width
    120 fs
  • Repetition Rate
    75 MHz
  • Technology
    Solid State Laser
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Polarization
    Vertical
  • Gain Medium Type
    Solid State Laser
  • Laser Gain Medium
    Erbium-Doped Laser
  • Warm up time
    15 minutes
  • Modulation Frequency
    50 to 60 Hz
  • Power Consumption
    250 W
  • Interface
    RS-232
  • Voltage
    100 to 240 VAC
  • Note
    Output Aperture Height: 43 mm, Head Heat Dissipation: 50 W

Physical Properties

  • Laser Head Dimension
    230 x 193 x 76 mm³
  • Laser Head Weight
    2 kg
  • Power Supply Dimension
    267 x 267 x 133 mm³
  • Power Supply Weight
    3.5 kg
  • Fiber length
    2 m

Environmental Conditions

  • Operating Temperature
    20 to 30 Degree C
  • Storage Temperature
    0 to 50 Degree C
