GX-200

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to IMRA America, Inc.

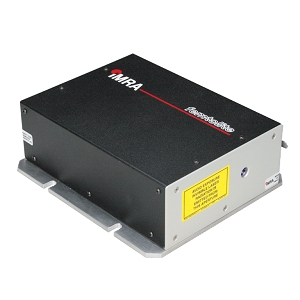

The GX-200 from IMRA America, Inc is a Laser with Wavelength 1620 nm, Power 200 mW, Output Power (Pulsed) 200 mW, Pulse Width 100 fs, Repetition Rate 75 MHz. More details for GX-200 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    GX-200
  • Manufacturer
    IMRA America, Inc

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Ultrafast Laser
    Femtosecond Lasers
  • Application Industry
    Scientific / Research
  • Application
    Microscopy, Imaging, Spectroscopy
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1620 nm
  • Wavelength Accuracy
    ± 40 nm
  • Power
    200 mW
  • Output Power (Pulsed)
    200 mW
  • Pulse Width
    100 fs
  • Repetition Rate
    75 MHz
  • Technology
    Solid State Laser
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Polarization
    Horizontal
  • Gain Medium Type
    Solid State Laser
  • Laser Gain Medium
    Erbium-Doped Laser
  • Warm up time
    15 minutes
  • Modulation Frequency
    50 to 60 Hz
  • Power Consumption
    250 W
  • Interface
    RS-232
  • Voltage
    100 to 240 VAC
  • Note
    Output Aperture Height: 43 mm, Head Heat Dissipation: 50 W

Physical Properties

  • Laser Head Dimension
    230 x 193 x 76 mm³
  • Laser Head Weight
    2 kg
  • Power Supply Dimension
    267 x 267 x 133 mm³
  • Power Supply Weight
    3.5 kg
  • Fiber length
    2 m

Environmental Conditions

  • Operating Temperature
    20 to 30 Degree C
  • Storage Temperature
    0 to 50 Degree C
