783L-23A

141 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Integrated Optics.

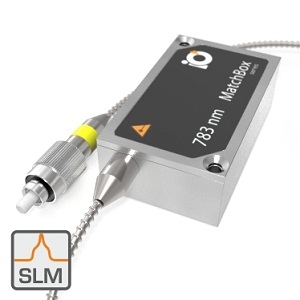

The 783L-23A from Integrated Optics is a Laser with Wavelength 782.9 nm, 783 nm, 783.1 nm, Power 70 mW, Output Power (CW) 70 mW, Storage Temperature -10 to 50 Degree C. More details for 783L-23A can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    783L-23A
  • Manufacturer
    Integrated Optics
  • Description
    783 NM SLM LASER (VBG DIODE; SM FIBER)

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research
  • Application
    Spectroscopy
  • Operation Mode
    CW Laser
  • Wavelength
    782.9 nm, 783 nm, 783.1 nm
  • Spectral Width :
    0.1 to 1 nm
  • Power
    70 mW
  • Output Power (CW)
    70 mW
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Mode
    Single Mode
  • Laser Color
    Infrared
  • Transverse Mode
    TEM00
  • Current
    1.5 A
  • Warm up time
    0.2 to 2 Minutes
  • Power Consumption
    0.4 to 10 W
  • Power Stability
    1 to 3%
  • RMS Noise Power
    0.25%, 0.6%
  • Interface
    UART/USB
  • Power Supply
    5 VDC
  • Voltage
    4.8 to 5.3 VDC
  • RoHS
    Yes

Physical Properties

  • Laser Head Dimension
    50 x 30 x 16 mm
  • Weight
    0.1 to 0.14 kg

Environmental Conditions

  • Storage Temperature
    -10 to 50 Degree C
