830L-21A

141 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Integrated Optics.

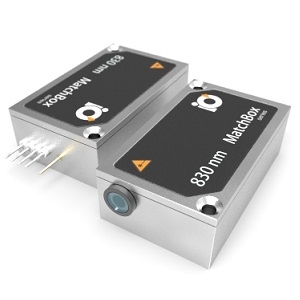

The 830L-21A from Integrated Optics is a Laser with Wavelength 830 nm, Power 80 mW, Output Power (CW) 80 mW, Operating Temperature 15 to 30 Degree C, Storage Temperature -10 to 50 Degree C. More details for 830L-21A can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    830L-21A
  • Manufacturer
    Integrated Optics
  • Description
    830 NM SLM LASER (VBG DIODE; FREE-SPACE)

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research
  • Application
    Fluorescence, Spectroscopy
  • Operation Mode
    CW Laser
  • Wavelength
    830 nm
  • Spectral Width :
    0.1 to 1 pm
  • Power
    80 mW
  • Output Power (CW)
    80 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Mode
    Single Mode
  • Laser Color
    Near-Infrared
  • Polarization
    Horizontal
  • Transverse Mode
    TEM00
  • Beam Divergence :
    1.1 mrad
  • Current
    1.5 A
  • Warm up time
    0.2 to 2 Minutes
  • Power Consumption
    0.4 to 10 W
  • Power Stability
    1 to 2%
  • RMS Noise Power
    0.25 to 0.6% rms
  • Interface
    UART/USB
  • Voltage
    4.8 to 5.3 VDC
  • RoHS
    Yes

Physical Properties

  • Laser Head Dimension
    50 x 30 x 16 mm
  • Weight
    0.1 to 0.14 kg
  • Beam Area
    Beam Height: 9.9 x 10.4 x 10.9 mm
  • Beam Diameter
    1 mm

Environmental Conditions

  • Operating Temperature
    15 to 30 Degree C
  • Storage Temperature
    -10 to 50 Degree C
