BLM-30

Laser by IPG Photonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to IPG Photonics.

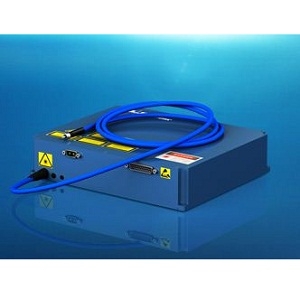

The BLM-30 from IPG Photonics is a Laser with Wavelength 450 nm, Power 30 W, Output Power (CW) 30 W, Pulse Width 1 to 2 ns, Repetition Rate 10 to 300 kHz. More details for BLM-30 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BLM-30
  • Manufacturer
    IPG Photonics
  • Description
    Blue Diode Laser Modules

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated), OEM Laser Module
  • Application Industry
    Scientific / Research, Medical
  • Application
    Pumping Source, Laser Surgery, Dermatology, Oncology, Ophthalmology
  • Operation Mode
    CW/Modulated
  • Wavelength
    450 nm
  • Wavelength Accuracy
    ±5 nm
  • Bandwidth
    5 nm
  • Power
    30 W
  • Output Power (CW)
    30 W
  • Pulse Width
    1 to 2 ns
  • Repetition Rate
    10 to 300 kHz
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Blue, Violet
  • Connectors
    SMA-905
  • Power Consumption
    100 W
  • Power Stability
    ±1%
  • Voltage
    58 VDC

Physical Properties

  • Dimension
    80 x 160 x 22 mm
  • Fiber diameter
    100 µm

Environmental Conditions

  • Cooling Method
    Conduction-cooled
