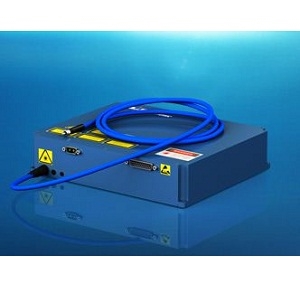

BLM-50

Note: Your Quotation Request will be directed to IPG Photonics.

The BLM-50 from IPG Photonics is a Laser with Wavelength 450 nm, Power 50 W, Output Power (CW) 50 W. More details for BLM-50 can be seen below.

Product Specifications View similar products

Product Details

  • Part Number
    BLM-50
  • Manufacturer
    IPG Photonics
  • Description
    Blue Diode Laser Modules

General Parameters

  • Configuration
    Laser Head with Control Unit (Integrated), OEM Laser Module
  • Type
    Laser Module
  • Operation Mode
    CW/Modulated
  • Wavelength
    450 nm
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Blue, Violet
  • Power
    50 W
  • Output Power (CW)
    50 W
  • Application
    Entertainment, Optical Pumping, Medical
  • Application Industry
    Scientific, Medical
  • Bandwidth
    5 nm
  • Connectors
    SMA-905
  • Power Consumption
    150 W
  • Power Stability
    ±1%
  • Wavelength Accuracy
    ±5 nm
  • Voltage
    58 VDC

Physical Properties

  • Dimension
    80 x 160 x 22 mm
  • Fiber diameter
    200 µm

Environmental Conditions

  • Cooling Method
    Conduction-cooled
