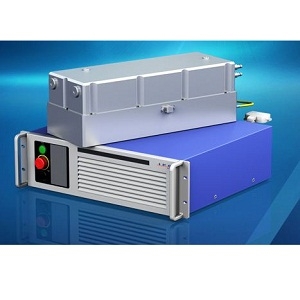

CLPF-2400-80-30-6-PA

Laser by IPG Photonics
Request Quote

Note: Your Quotation Request will be directed to IPG Photonics.

The CLPF-2400-80-30-6-PA from IPG Photonics is a Laser with Wavelength 2100, 2400, 2600 nm, Power 6 W, Output Power (Pulsed) 6 W, Pulse Energy 60 to 100 nJ, Pulse Width 30 fs. More details for CLPF-2400-80-30-6-PA can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CLPF-2400-80-30-6-PA
  • Manufacturer
    IPG Photonics
  • Description
    Femtosecond Pulsed Cr:Zn/Se/S Mid-IR Lasers

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Separate)
  • Ultrafast Laser
    Femtosecond Lasers
  • Application Industry
    Scientific / Research, Medical
  • Application
    Imaging, Bio-Medical, Spectrum Analysis, Metrology, Optical Coherence Tomography, Spectroscopy, Pumping Source
  • Operation Mode
    Pulsed Laser
  • Wavelength
    2100, 2400, 2600 nm
  • Bandwidth
    100 to 600 nm
  • Power
    6 W
  • Output Power (Pulsed)
    6 W
  • Pulse Energy :
    60 to 100 nJ
  • Pulse Energy
    60 to 100 nJ
  • Pulse Width
    30 fs
  • Repetition Rate
    80 to 1000 MHz
  • Technology
    Solid State Laser
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Polarization Orientation
    Linear
  • Beam Divergence :
    0.5 mrad
  • Gain Medium Type
    Solid State Laser
  • Laser Cavity Material
    Cr:ZnS, Cr:ZnSe
  • Laser Gain Medium
    Chromium-Doped
  • Warm up time
    15 min
  • Power Consumption
    200 W
  • Power Stability
    ±1%
  • Power Supply
    100 to 240 VAC, 50 to 60 Hz

Physical Properties

  • Laser Head Dimension
    189 x 452 x 107 mm
  • Power Supply Dimension
    448 x 403 x 132 mm
  • Dimension
    448 x 403 x 132 mm
  • Beam Diameter
    1.5 mm
