DLM-100

Laser by IPG Photonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to IPG Photonics.

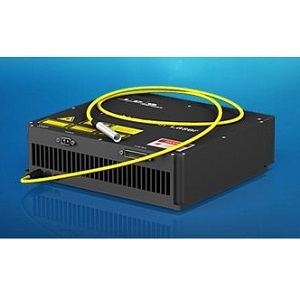

The DLM-100 from IPG Photonics is a Laser with Wavelength 915, 940, 960, 970 nm, Power 100 W, Output Power (CW) 100 W, Repetition Rate 50 KHz. More details for DLM-100 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    DLM-100
  • Manufacturer
    IPG Photonics
  • Description
    Air-cooled Diode Laser Module

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated), OEM Laser Module
  • Application Industry
    Scientific / Research, Environmental, Automotive / Industrial & Manufacturing, Medical
  • Application
    Pumping Source, Cladding, Welding, Laser Surgery, Dermatology, Oncology, Ophthalmology, Brazing, Selective Soldering, Annealing, Paint Stripping
  • Operation Mode
    CW/Modulated
  • Wavelength
    915, 940, 960, 970 nm
  • Bandwidth
    5 nm
  • Power
    100 W
  • Output Power (CW)
    100 W
  • Repetition Rate
    50 KHz
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Mode
    Multi-Mode
  • Laser Color
    Infrared
  • Power Consumption
    250 W
  • Power Stability
    ±1%
  • Voltage
    25 VDC

Physical Properties

  • Dimension
    270 x 255 x 75 mm
  • Fiber diameter
    200 µm
  • Fiber length
    5 mm

Environmental Conditions

  • Cooling Method
    Air-cooled
