DLR-976-100

Laser by IPG Photonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to IPG Photonics.

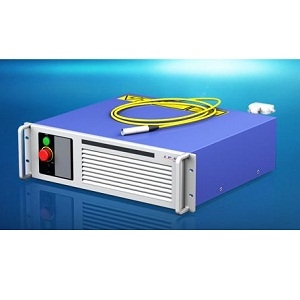

The DLR-976-100 from IPG Photonics is a Laser with Wavelength 976 nm, Power 100 W, Output Power (CW) 100 W, Repetition Rate 50 KHz. More details for DLR-976-100 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    DLR-976-100
  • Manufacturer
    IPG Photonics
  • Description
    Diode Laser Rack-mounted Units

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research, Automotive / Industrial & Manufacturing
  • Application
    Pumping Source, Brazing, Welding, Selective Soldering, Surface Treatment
  • Operation Mode
    CW/Modulated
  • Wavelength
    976 nm
  • Wavelength Accuracy
    ±1 nm
  • Bandwidth
    0.5 nm
  • Power
    100 W
  • Output Power (CW)
    100 W
  • Repetition Rate
    50 KHz
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Power Consumption
    300 W
  • Power Stability
    ±1%
  • Power Supply
    100 to 240 VAC, 50 to 60 Hz
  • Note
    Power Tunability: 10 to 100%

Physical Properties

  • Dimension
    448 x 403 x 132 mm
  • Fiber diameter
    110 µm

Environmental Conditions

  • Cooling Method
    Air-cooled
