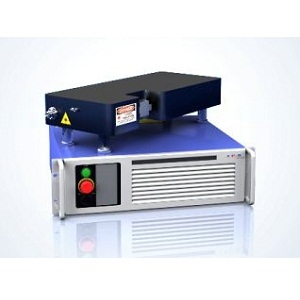

ELPP-1645-10-100-20

Laser by IPG Photonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to IPG Photonics.

The ELPP-1645-10-100-20 from IPG Photonics is a Laser with Wavelength 1.645 µm, Power 20 W, Output Power (Pulsed) 20 W, Pulse Energy 10 nJ, Pulse Width 10 to 500 ps. More details for ELPP-1645-10-100-20 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ELPP-1645-10-100-20
  • Manufacturer
    IPG Photonics
  • Description
    Er:YAG Fiber Pumped Modelocked Laser

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Separate)
  • Ultrafast Laser
    Picosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing, Scientific / Research, Medical, Defense / Military & Aerospace, Environmental
  • Application
    Material processing, Laser pumping, Laser Surgery, Dermatology, Oncology, LiDAR, Remote Sensing
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1.645 µm
  • Power
    20 W
  • Output Power (Pulsed)
    20 W
  • Pulse Energy :
    10 nJ
  • Pulse Energy
    10 nJ
  • Pulse Width
    10 to 500 ps
  • Repetition Rate
    80 to 200 MHz
  • Technology
    Solid State Laser
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Polarization Orientation
    Linear
  • Transverse Mode
    TEM00
  • Gain Medium Type
    Solid State Laser
  • Laser Cavity Material
    Er:YAG
  • Laser Gain Medium
    Erbium-Doped Laser
  • Warm up time
    5 to 15 min
  • Power Supply
    100 to 240 VAC, 50 to 60 Hz

Physical Properties

  • Laser Head Dimension
    213 x 483 x 87 mm
  • Power Supply Dimension
    448 x 403 x 132 mm
  • Dimension
    448 x 403 x 132 mm
