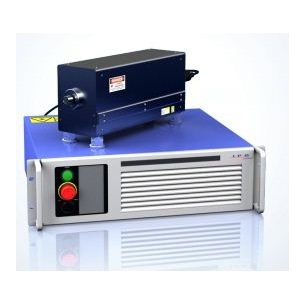

FLPNT Series

Laser by IPG Photonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to IPG Photonics.

The FLPNT Series from IPG Photonics is a Laser with Wavelength 3.7 to 4.8 µm, Power 20 W, Output Power (Pulsed) 20 W, Pulse Energy 0.1 to 1 mJ, Pulse Width 2 to 20 ns. More details for FLPNT Series can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FLPNT Series
  • Manufacturer
    IPG Photonics
  • Description
    Fe:ZnSe/S Nanosecond Pulsed Mid-IR Lasers

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing, Scientific / Research, Environmental, Medical
  • Application
    Material processing, Sensing, Monitoring, Spectroscopy, Laser Surgery, Dermatology, Oncology, Ophthalmology
  • Operation Mode
    Pulsed Laser
  • Wavelength
    3.7 to 4.8 µm
  • Spectral Width :
    10 nm
  • Power
    20 W
  • Output Power (Pulsed)
    20 W
  • Pulse Energy :
    0.1 to 1 mJ
  • Pulse Energy
    0.1 to 1 mJ
  • Pulse Width
    2 to 20 ns
  • Repetition Rate
    0.1 to 1 KHz
  • Technology
    Solid State Laser
  • Tunable
    Yes
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Polarization Orientation
    Linear, Random
  • Beam Divergence :
    3 mrad
  • Gain Medium Type
    Solid State Laser
  • Laser Cavity Material
    Fe:ZnSe, Fe:ZnS
  • Laser Gain Medium
    Ferrite-Doped Laser
  • Warm up time
    5 to 15 min
  • Power Consumption
    200 W
  • Power Supply
    110 to 240 VAC

Physical Properties

  • Laser Head Dimension
    107 x 323 x 143 mm
  • Power Supply Dimension
    448 x 403 x 132 mm
  • Dimension
    448 x 403 x 132 mm
  • Beam Diameter
    2 mm

Environmental Conditions

  • Cooling Method
    Air-Cooled
