GLPN-200-1-50-M

Laser by IPG Photonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to IPG Photonics.

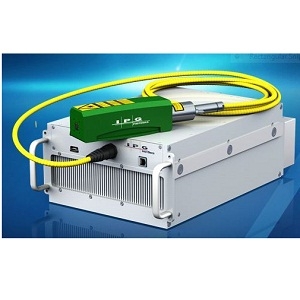

The GLPN-200-1-50-M from IPG Photonics is a Laser with Wavelength 532 nm, Power 50 W, Output Power (Pulsed) 50 W, Pulse Energy 20 µJ, Pulse Width 1.3 to 2 ns. More details for GLPN-200-1-50-M can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    GLPN-200-1-50-M
  • Manufacturer
    IPG Photonics
  • Description
    Pulsed Green Nanosecond Fiber Laser

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate), OEM Laser Module
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing, Scientific / Research
  • Application
    Material processing, Machine Vision, Marking, 3D Printing, Laser Ablation, Scribing
  • Operation Mode
    Pulsed Laser
  • Wavelength
    532 nm
  • Wavelength Accuracy
    ±10 nm
  • Power
    50 W
  • Output Power (Pulsed)
    50 W
  • Pulse Energy :
    20 µJ
  • Pulse Energy
    20 µJ
  • Pulse Width
    1.3 to 2 ns
  • Repetition Rate
    10 to 600 KHz
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Green
  • Gain Medium Type
    Solid State Laser
  • Peak Power
    150 kW
  • Voltage
    48 VDC

Physical Properties

  • Laser Head Dimension
    65 x 216 x 70 mm
  • Power Supply Dimension
    440 x 264 x 150 mm
  • Dimension
    440 x 264 x 150 mm

Environmental Conditions

  • Cooling Method
    Water-Cooled
