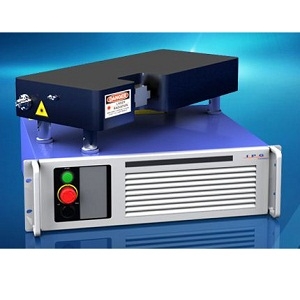

HLPP-2090-10-100-20

Laser by IPG Photonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to IPG Photonics.

The HLPP-2090-10-100-20 from IPG Photonics is a Laser with Wavelength 2.09 µm, Power 20 W, Output Power (Pulsed) 20 W, Pulse Energy 10 µJ, Pulse Width 100 to 500 ps. More details for HLPP-2090-10-100-20 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    HLPP-2090-10-100-20
  • Manufacturer
    IPG Photonics
  • Description
    Ho:YAG Fiber Pumped Modelocked Laser

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Separate)
  • Ultrafast Laser
    Picosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing, Scientific / Research, Defense / Military & Aerospace, Medical
  • Application
    Marking, Spectroscopy, Cutting, Welding, LiDAR, Oncology, Laser Surgery, Laser pumping
  • Operation Mode
    Pulsed Laser
  • Wavelength
    2.09 µm
  • Power
    20 W
  • Output Power (Pulsed)
    20 W
  • Pulse Energy :
    10 µJ
  • Pulse Energy
    10 µJ
  • Pulse Width
    100 to 500 ps
  • Repetition Rate
    80 to 200 MHz
  • Technology
    Solid State Laser
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Polarization Orientation
    Linear
  • Transverse Mode
    TEM00
  • Gain Medium Type
    Solid State Laser
  • Laser Cavity Material
    Ho:YAG
  • Laser Gain Medium
    Holmium-Doped Laser
  • Warm up time
    5 to 15 min
  • Power Consumption
    200 W
  • Power Supply
    100 to 240 VAC, 50 to 60 Hz

Physical Properties

  • Laser Head Dimension
    213 x 483 x 87 mm
  • Power Supply Dimension
    448 x 403 x 132 mm
  • Dimension
    448 x 403 x 132 mm
