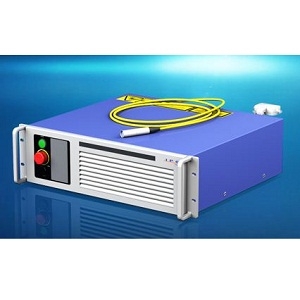

TLR-1-LP

Laser by IPG Photonics | www.ipgphotonics.com

Note: Your Quotation Request will be directed to IPG Photonics.

The TLR-1-LP from IPG Photonics is a Laser with Wavelength 1.9 to 2.05 µm, Power 1 W, Output Power (CW) 1 W. More details for TLR-1-LP can be seen below.

 Product Specifications

    Product Details

    • Part Number :
      TLR-1-LP
    • Manufacturer :
      IPG Photonics
    • Description :
      Thulium Linearly Polarized CW Lasers

    General Parameters

    • Configuration :
      Laser Head with Control Unit (Integrated)
    • Type :
      Laser System
    • Technology :
      Solid State Laser
    • Operation Mode :
      CW Laser
    • Wavelength :
      1.9 to 2.05 µm
    • Tunable :
      No
    • Fiber Coupled :
      Yes
    • Mode :
      Single-Mode
    • Laser Color :
      Infrared
    • Power :
      1 W
    • Output Power (CW) :
      1 W
    • Application :
      Solid State IR Laser Pumping, Remote Sensing, Pollution Control, Scientific, Biomedical, Optical Metrology
    • Polarization Orientation :
      Linear
    • Polarization ratio :
      50:1
    • Laser Gain Medium :
      Thulium Laser
    • Beam Quality Factor (M2) :
      1.1
    • Power Stability :
      ±2%
    • Wavelength Accuracy :
      ±1 nm
    • RMS Noise Power :
      2% RMS
    • Package :
      19" Rack-Mount
    • Power Supply :
      50 to 60 Hz, 100 to 240 VAC

    Physical Properties

    • Dimension :
      448 x 132 x 403 mm

    Environmental Conditions

    • Cooling Method :
      Air-Cooled
