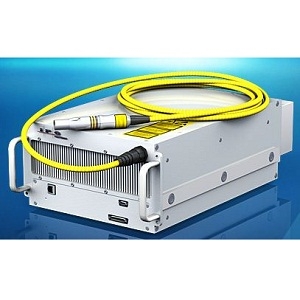

YLM-150/1500-QCW

Laser by IPG Photonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to IPG Photonics.

The YLM-150/1500-QCW from IPG Photonics is a Laser with Wavelength 1.07 µm, Power 250 W, Output Power (CW) 250 W, Output Power (Pulsed) 250 W, Pulse Energy 15 J. More details for YLM-150/1500-QCW can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    YLM-150/1500-QCW
  • Manufacturer
    IPG Photonics
  • Description
    Single-mode Quasi-CW Ytterbium Lasers

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research, Automotive / Industrial & Manufacturing, Communications, Medical
  • Application
    Laser pumping, Cutting, Welding, Machine Vision, Free-Space Optical Communication, Oncology, Laser Surgery, Medical Imaging, Selective Soldering, Drilling
  • Operation Mode
    CW Laser, Pulsed Laser
  • Wavelength
    1.07 µm
  • Wavelength Accuracy
    ±5 nm
  • Power
    250 W
  • Output Power (CW)
    250 W
  • Output Power (Pulsed)
    250 W
  • Pulse Energy :
    15 J
  • Pulse Energy
    15 J
  • Pulse Width
    0.05 to 50 ms
  • Repetition Rate
    0 to 50 kHz
  • Technology
    Solid State Laser
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Mode
    Single Mode
  • Laser Color
    Infrared
  • Gain Medium Type
    Solid State Laser
  • Laser Gain Medium
    Ytterbium Laser
  • Modulation Frequency
    0 to 50 KHz
  • Power Consumption
    900 W(CW), 600 W(Pulsed)
  • Power Stability
    ±1%
  • Peak Power
    1500 W
  • Voltage
    48 VDC
  • Note
    Power Tunability: 10 to 100%

Physical Properties

  • Dimension
    336 x 435 x 148 mm
  • Weight
    25 kg

Environmental Conditions

  • Cooling Method
    Air-cooled
