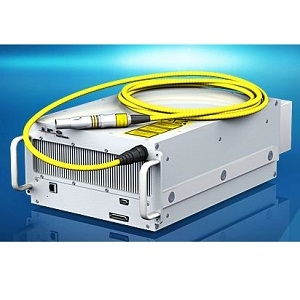

YLM-200/2000-QCW-MM

Laser by IPG Photonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to IPG Photonics.

The YLM-200/2000-QCW-MM from IPG Photonics is a Laser with Wavelength 1.07 µm, Power 250 W, Output Power (CW) 250 W, Output Power (Pulsed) 250 W, Pulse Energy 20 J. More details for YLM-200/2000-QCW-MM can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    YLM-200/2000-QCW-MM
  • Manufacturer
    IPG Photonics
  • Description
    Multi-mode Quasi-CW Ytterbium Lasers

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research, Automotive / Industrial & Manufacturing, Communications, Medical
  • Application
    Laser pumping, Cutting, Welding, Machine Vision, Free-Space Optical Communication, Oncology, Laser Surgery, Medical Imaging, Selective Soldering, Drilling, 3D Printing
  • Operation Mode
    CW Laser, Pulsed Laser
  • Wavelength
    1.07 µm
  • Wavelength Accuracy
    ±5 nm
  • Power
    250 W
  • Output Power (CW)
    250 W
  • Output Power (Pulsed)
    250 W
  • Pulse Energy :
    20 J
  • Pulse Energy
    20 J
  • Pulse Width
    0.05 to 50 ms
  • Repetition Rate
    0 to 50 kHz
  • Technology
    Solid State Laser
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Mode
    Multi-Mode
  • Laser Color
    Infrared
  • Gain Medium Type
    Solid State Laser
  • Laser Gain Medium
    Ytterbium Laser
  • Power Consumption
    900 W(CW), 800 W(Pulsed)
  • Power Stability
    ±0.5%
  • Peak Power
    2000 W
  • Voltage
    48 VDC
  • Note
    Power Tunability: 10 to 100%

Physical Properties

  • Dimension
    256 x 435 x 148 mm
  • Weight
    25 kg
  • Fiber diameter
    50, 100, 200 µm

Environmental Conditions

  • Cooling Method
    Air-cooled
