YLM-300-AC

Laser by IPG Photonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to IPG Photonics.

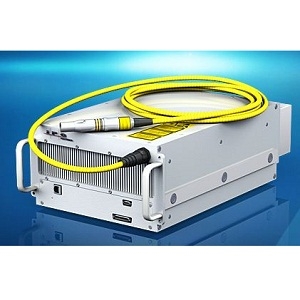

The YLM-300-AC from IPG Photonics is a Laser with Wavelength 1.07 µm, Power 300 W, Output Power (CW) 300 W. More details for YLM-300-AC can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    YLM-300-AC
  • Manufacturer
    IPG Photonics
  • Description
    Ytterbium Single-mode CW Lasers

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated), OEM Laser Module
  • Application Industry
    Automotive / Industrial & Manufacturing
  • Application
    Cutting, Drilling
  • Operation Mode
    CW/Modulated
  • Wavelength
    1.07 µm
  • Wavelength Accuracy
    ±10 nm
  • Power
    300 W
  • Output Power (CW)
    300 W
  • Technology
    Solid State Laser
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Mode
    Single-Mode
  • Laser Color
    Infrared
  • Gain Medium Type
    Solid State Laser
  • Laser Gain Medium
    Ytterbium Laser
  • Modulation Frequency
    0 to 50 KHz
  • Power Consumption
    900 W
  • Power Stability
    ±0.5%
  • RMS Noise Power
    2% RMS
  • Voltage
    48 VDC

Physical Properties

  • Package
    19" Rack-Mount
  • Dimension
    264 x 435 x 150 mm
  • Weight
    25 kg
  • Beam Diameter
    0.37 mm

Environmental Conditions

  • Cooling Method
    Air-Cooled
