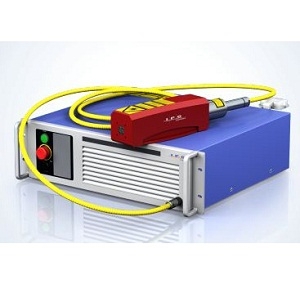

YLPF-1-200-10-R

Laser by IPG Photonics
Request Quote

Note: Your Quotation Request will be directed to IPG Photonics.

The YLPF-1-200-10-R from IPG Photonics is a Laser with Wavelength 1.03 µm, Power 10 W, Output Power (Pulsed) 10 W, Pulse Energy 1 µJ, Pulse Width 200 to 500 fs. More details for YLPF-1-200-10-R can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    YLPF-1-200-10-R
  • Manufacturer
    IPG Photonics
  • Description
    Ytterbium Femtosecond Pulsed Lasers

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Separate)
  • Ultrafast Laser
    Femtosecond Lasers
  • Application Industry
    Medical, Automotive / Industrial & Manufacturing, Scientific / Research
  • Application
    Ophthalmology, Dicing, Life Science, Solar cell, Structuring, Machine Vision, Cutting, Laser Surgery, Dermatology, Oncology, Marking, Drilling, Laser Ablation
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1.03 µm
  • Power
    10 W
  • Output Power (Pulsed)
    10 W
  • Pulse Energy :
    1 µJ
  • Pulse Energy
    1 µJ
  • Pulse Width
    200 to 500 fs
  • Repetition Rate
    20 to 2000 KHz
  • Technology
    Solid State Laser
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Gain Medium Type
    Solid State Laser
  • Laser Gain Medium
    Ytterbium Laser
  • Power Consumption
    50 W
  • Peak Power
    Up to 50 MW
  • Power Supply
    100 to 240 VAC, 50 to 60 Hz

Physical Properties

  • Laser Head Dimension
    65 x 216 x 70 mm
  • Power Supply Dimension
    448 x 431 x 132 mm
  • Dimension
    448 x 431 x 132 mm

Environmental Conditions

  • Cooling Method
    Water-cooled
Click to view more product details on manufacturer's website
