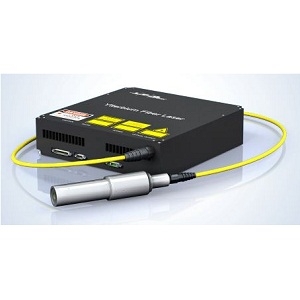

YLPN-1-4x200-50-M

Laser by IPG Photonics
333 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to IPG Photonics.

The YLPN-1-4x200-50-M from IPG Photonics is a Laser with Wavelength 1.064 µm, Power 50 W, Output Power (Pulsed) 50 W, Pulse Energy 1 mJ, Pulse Width 4 to 200 ns. More details for YLPN-1-4x200-50-M can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    YLPN-1-4x200-50-M
  • Manufacturer
    IPG Photonics
  • Description
    Adjustable Pulse Duration Fiber Laser

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate), OEM Laser Module
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing
  • Application
    Marking, Trimming, Surface Treatment, Scribing, 3D Printing, Cutting
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1.064 µm
  • Power
    50 W
  • Output Power (Pulsed)
    50 W
  • Pulse Energy :
    1 mJ
  • Pulse Energy
    1 mJ
  • Pulse Width
    4 to 200 ns
  • Repetition Rate
    1.6 to 1000 KHz
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Gain Medium Type
    Solid State Laser
  • Power Consumption
    120 W
  • Voltage
    24 VDC

Physical Properties

  • Laser Head Dimension
    247 x 46 mm
  • Power Supply Dimension
    292 x 233 x 59 mm
  • Dimension
    292 x 233 x 59 mm

Environmental Conditions

  • Cooling Method
    Air-Cooled
