YLPP-100-1-100-R

Note: Your Quotation Request will be directed to IPG Photonics.

The YLPP-100-1-100-R from IPG Photonics is Ytterbium Picosecond Hybrid Laser that operates at 1030 nm. It provides pulses with 100 μJ of pulse energy with a scalable average output power of 100 W and customer selected pulse durations in the range of 1 to 5 ps at a full operational repetition rate range of 50-2000 kHz. The novel design architecture together with flexible control electronics provides conveniently short warm-up times and allows adjustment of both pulse energy and repetition rate without affecting the output beam parameters.

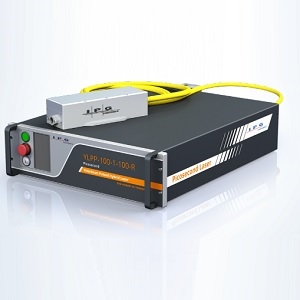

This laser is available as a benchtop unit that measures 448 x 580 x 132 mm (80 x 245 x 61 mm laser head). It is ideal for a wide range of applications including precision micromachining, surface microstructuring and texturing, multilayer polymer film cutting, battery and thin metal foil cutting, sapphire LED wafer scribing, thin-film ablation for solar/PV/flat panel display, cutting & drilling glass/sapphire, micromachining of ceramics. The laser requires an AC supply voltage from 100 to 240 V and consumes up to 750 W of power.

Product Specifications View similar products

Product Details

  • Part Number
    YLPP-100-1-100-R
  • Manufacturer
    IPG Photonics

General Parameters

  • Configuration
    Laser Head with Control Unit (Separate)
  • Type
    Laser System
  • Technology
    Solid State Laser
  • Operation Mode
    Pulsed Laser
  • Ultrafast Laser
    Picosecond Lasers
  • Wavelength
    1030 nm
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Power
    up to 100 W
  • Pulse Energy
    up to 100 uJ
  • Pulse Width
    1 to 5 ps
  • Application
    Ablation, Cutting, Dicing, Drilling, Flat Panel Display Cutting, Medical Device Manufacturing, Micromachining, Structuring, Thin Film, Scribing
  • Repetition Rate
    50 to 2000 kHz
  • Gain Medium Type
    Solid State (Crystal / Glass)
  • Laser Gain Medium
    Ytterbium-Doped
  • Application Industry
    Components / Materials, Industrial (Material Processing), Semiconductors & Microelectronics, Medical
  • Beam Quality Factor (M2)
    < 1.5
  • Laser Class
    Class 4
  • Power Consumption
    < 750 W
  • Peak Power
    Up to 100 MW
  • Power Supply
    100 to 240 VAC, 50/60 Hz

Physical Properties

  • Laser Head Dimension
    80 x 245 x 61 mm
  • Dimension
    448 x 580 x 132 mm(Control Unit)

Environmental Conditions

  • Cooling Method
    Water Cooled
