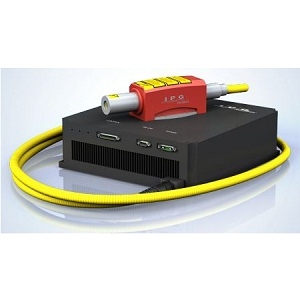

YLPP-100-70-50-M

Laser by IPG Photonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to IPG Photonics.

The YLPP-100-70-50-M from IPG Photonics is a Laser with Wavelength 1.06 µm, Power 50 W, Output Power (Pulsed) 50 W, Pulse Energy 100 µJ, Pulse Width 70 ps. More details for YLPP-100-70-50-M can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    YLPP-100-70-50-M
  • Manufacturer
    IPG Photonics
  • Description
    Ytterbium Picosecond Fiber Laser

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Separate)
  • Ultrafast Laser
    Picosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing, Scientific / Research
  • Application
    Material processing, 3D Printing, Machine Vision, Laser Ablation, Scribing, Marking
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1.06 µm
  • Power
    50 W
  • Output Power (Pulsed)
    50 W
  • Pulse Energy :
    100 µJ
  • Pulse Energy
    100 µJ
  • Pulse Width
    70 ps
  • Repetition Rate
    10 to 1500 KHz
  • Technology
    Solid State Laser
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Gain Medium Type
    Solid State Laser
  • Laser Gain Medium
    Ytterbium Laser
  • Power Consumption
    230 W
  • Peak Power
    Up to 1 MW
  • Voltage
    24 VDC

Physical Properties

  • Laser Head Dimension
    55 x 260 x 60 mm
  • Power Supply Dimension
    270 x 220 x 86 mm
  • Dimension
    270 x 220 x 86 mm

Environmental Conditions

  • Cooling Method
    Air-cooled
