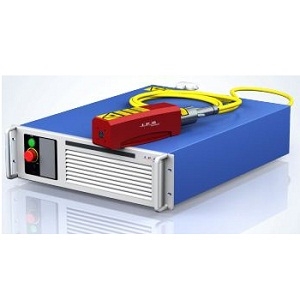

YLPP-50-10-30-R

Laser by IPG Photonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to IPG Photonics.

The YLPP-50-10-30-R from IPG Photonics is a Laser with Wavelength 1.03 µm, Power 30 W, Output Power (Pulsed) 30 W, Pulse Energy 50 µJ, Pulse Width 10 to 20 ps. More details for YLPP-50-10-30-R can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    YLPP-50-10-30-R
  • Manufacturer
    IPG Photonics
  • Description
    Ytterbium Picosecond Fiber Lasers

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Separate)
  • Ultrafast Laser
    Picosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing, Scientific / Research
  • Application
    Machine Vision, 3D Printing, Laser Ablation, Marking
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1.03 µm
  • Power
    30 W
  • Output Power (Pulsed)
    30 W
  • Pulse Energy :
    50 µJ
  • Pulse Energy
    50 µJ
  • Pulse Width
    10 to 20 ps
  • Repetition Rate
    20 to 600 KHz
  • Technology
    Solid State Laser
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Gain Medium Type
    Solid State Laser
  • Laser Gain Medium
    Ytterbium Laser
  • Power Consumption
    150 W
  • Peak Power
    Up to 5 MW
  • Power Supply
    100 to 240 VAC, 50 to 60 Hz

Physical Properties

  • Laser Head Dimension
    65 x 201 x 70 mm
  • Power Supply Dimension
    448 x 418 x 132 mm
  • Dimension
    448 x 418 x 132 mm

Environmental Conditions

  • Cooling Method
    Air-cooled
