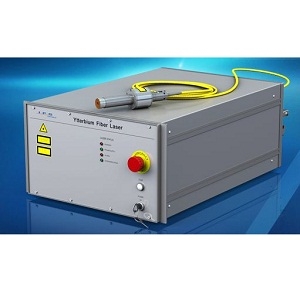

YPLN-1-100-200-R

Laser by IPG Photonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to IPG Photonics.

The YPLN-1-100-200-R from IPG Photonics is a Laser with Wavelength 1.064 µm, Power 200 W, Output Power (Pulsed) 200 W, Pulse Energy 1 mJ, Pulse Width 100 ns. More details for YPLN-1-100-200-R can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    YPLN-1-100-200-R
  • Manufacturer
    IPG Photonics
  • Description
    High Power Pulsed Lasers for Micromachining

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing
  • Application
    Cutting, Scribing, Drilling, Marking, Trimming, Surface Treatment, 3D Printing
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1.064 µm
  • Power
    200 W
  • Output Power (Pulsed)
    200 W
  • Pulse Energy :
    1 mJ
  • Pulse Energy
    1 mJ
  • Pulse Width
    100 ns
  • Repetition Rate
    20 to 500 KHz
  • Technology
    Solid State Laser, Q-Switched Laser
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Gain Medium Type
    Solid State Laser
  • Laser Gain Medium
    Ytterbium Laser
  • Power Consumption
    1000 W
  • Power Supply
    90 to 240 VAC

Physical Properties

  • Laser Head Dimension
    64 x 317 mm
  • Power Supply Dimension
    483 x 665 x 266 mm
  • Dimension
    483 x 665 x 266 mm
  • Weight
    40 kg

Environmental Conditions

  • Cooling Method
    Water-Cooled
