CW 3000W

Request Quote

Note: Your Quotation Request will be directed to JPT Opto-Electronics.

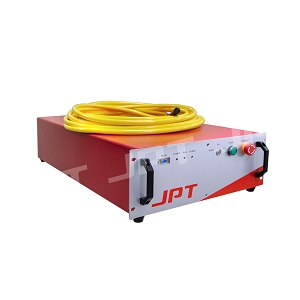

The CW 3000W from JPT Opto-Electronics is a Laser with Wavelength 1080 nm, Power 3000 W, Operating Temperature 24 to 26 Degree C, Storage Temperature -20 to 50 Degree C. More details for CW 3000W can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CW 3000W
  • Manufacturer
    JPT Opto-Electronics
  • Description
    1080 nm Near-Infrared CW Laser System

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Automotive / Industrial & Manufacturing
  • Application
    Laser cutting, Laser welding, 3D printing, Precision drilling, Other applications
  • Operation Mode
    CW Laser
  • Wavelength
    1080 nm
  • Spectral Width :
    <6 nm
  • Power
    3000 W
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Near-Infrared
  • Modulation Frequency
    20 kHz
  • Power Consumption
    10000 W
  • Power Supply
    370 to 390 VAC
  • Note
    Switch on/off time: <20 µs

Physical Properties

  • Package
    Benchtop
  • Dimension
    483 x 832 x 178 mm (W x D x H)
  • Weight
    86 kg
  • Beam Diameter
    2 mm x mrad
  • Fiber length
    15 m

Environmental Conditions

  • Cooling Method
    Water Cooled
  • Operating Temperature
    24 to 26 Degree C
  • Storage Temperature
    -20 to 50 Degree C
