QCW 150W/1500W

Request Quote

Note: Your Quotation Request will be directed to JPT Opto-Electronics.

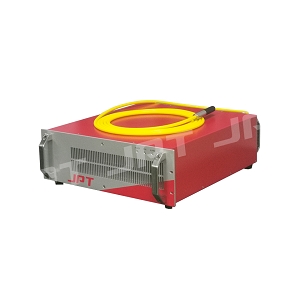

The QCW 150W/1500W from JPT Opto-Electronics is a Laser with Wavelength 1080 nm, Power 150 W (Pulse), 250 W (CW), Output Power (CW) 250 W, Output Power (Pulsed) 150 W, Pulse Energy 15 J. More details for QCW 150W/1500W can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    QCW 150W/1500W
  • Manufacturer
    JPT Opto-Electronics
  • Description
    1080 nm Near-Infrared CW Laser, Pulsed Laser System

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Automotive / Industrial & Manufacturing, Environmental
  • Application
    Laser cutting, Laser welding, 3D printing, Precision drilling, Cladding, Other applications
  • Operation Mode
    CW Laser, Pulsed Laser
  • Wavelength
    1080 nm
  • Spectral Width :
    <4 nm
  • Power
    150 W (Pulse), 250 W (CW)
  • Output Power (CW)
    250 W
  • Output Power (Pulsed)
    150 W
  • Pulse Energy :
    15 J
  • Pulse Energy
    15 J
  • Pulse Width
    0.01 to 10 ms
  • Repetition Rate
    0.001to 10 kHz
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Near-Infrared
  • Peak Power
    1500 W
  • Power Supply
    210 to 230 VAC
  • Note
    Switch on/off time: <20 µs

Physical Properties

  • Package
    Benchtop
  • Dimension
    483 x 752 x 177 mm (W x D x H)
  • Weight
    52 kg
  • Beam Diameter
    <2 mm x mrad
  • Fiber length
    5 m

Environmental Conditions

  • Cooling Method
    Air Cooled
  • Operating Temperature
    10 to 40 Degree C
  • Storage Temperature
    -20 to 50 Degree C
Click to view more product details on manufacturer's website
