SEAL-355-10S

Request Quote

Note: Your Quotation Request will be directed to JPT Opto-Electronics.

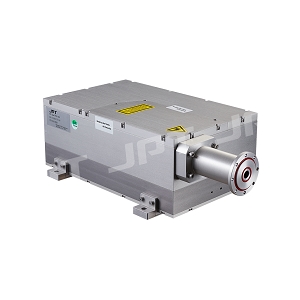

The SEAL-355-10S from JPT Opto-Electronics is a Laser with Wavelength 355 nm, Power >10 W, Pulse Width 18 ns, Repetition Rate 40 to 300 kHz, Operating Temperature 0 to 40 Degree C. More details for SEAL-355-10S can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    SEAL-355-10S
  • Manufacturer
    JPT Opto-Electronics
  • Description
    355 nm Ultraviolet Pulsed Laser System

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing
  • Application
    Marking, Cutting, Welding, Drilling, Engraving, 3D Printing, Cleaning
  • Operation Mode
    Pulsed Laser
  • Wavelength
    355 nm
  • Power
    >10 W
  • Pulse Width
    18 ns
  • Repetition Rate
    40 to 300 kHz
  • Pulse to Pulse Stability
    <3% rms
  • Technology
    DPSS Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Ultraviolet
  • Polarization
    Horizontal
  • Polarization ratio :
    >100:1
  • Transverse Mode
    TEM00
  • Beam Divergence :
    <2 mrad
  • Beam Quality Factor (M2) :
    <1.2
  • Gain Medium Type
    Solid State Laser
  • Beam Shape
    Circular
  • Power Consumption
    <350 W
  • Power Stability
    <3% rms
  • Voltage
    36 VDC

Physical Properties

  • Package
    Benchtop
  • Dimension
    302 x 180 x 114 mm (W x D x H)
  • Weight
    9.26 kg
  • Beam Diameter
    0.45 mm

Environmental Conditions

  • Cooling Method
    Water Cooled
  • Operating Temperature
    0 to 40 Degree C
  • Storage Temperature
    -15 to 50 Degree C
