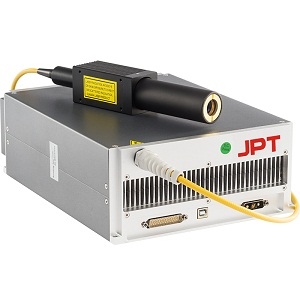

YDFLP-20-LP+-S

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to JPT Opto-Electronics.

The YDFLP-20-LP+-S from JPT Opto-Electronics is a Laser with Wavelength 1064 nm, Power 20 W, Output Power (Pulsed) 20 W, Pulse Energy 0.66 mJ, Pulse Width 200 ns. More details for YDFLP-20-LP+-S can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    YDFLP-20-LP+-S
  • Manufacturer
    JPT Opto-Electronics
  • Description
    JPT LP series pulsed fiber lasers make use of master oscillator power amplifier (MOPA) configuration

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing
  • Application
    Marking, Engraving, Material processing
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1064 nm
  • Bandwidth
    15 nm
  • Power
    20 W
  • Output Power (Pulsed)
    20 W
  • Pulse Energy :
    0.66 mJ
  • Pulse Energy
    0.66 mJ
  • Pulse Width
    200 ns
  • Repetition Rate
    30 to 400 KHz
  • Technology
    Q-Switched Laser
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Polarization Orientation
    Random
  • Gain Medium Type
    Solid State Laser
  • Current
    8 A
  • Power Consumption
    192 W
  • Power Stability
    ±5%
  • Voltage
    24 VDC

Physical Properties

  • Dimension
    315 x 220 x 99 mm
  • Weight
    9.75 Kg
  • Beam Diameter
    7 mm
  • Fiber length
    2 m

Environmental Conditions

  • Cooling Method
    Air-Cooled
  • Operating Temperature
    0 to 40 Degree C
  • Storage Temperature
    -10 to 60 Degree C
